Grinding Stones

Bowl Type Grinding Wheel

Product ID：Grinding Stones
QQ：
Phone: +86 15359 530909
Tel: +86 1535 9530909
Email: info@feisimachine.com
Time: 2020-01-08 16:42
INQUIRY

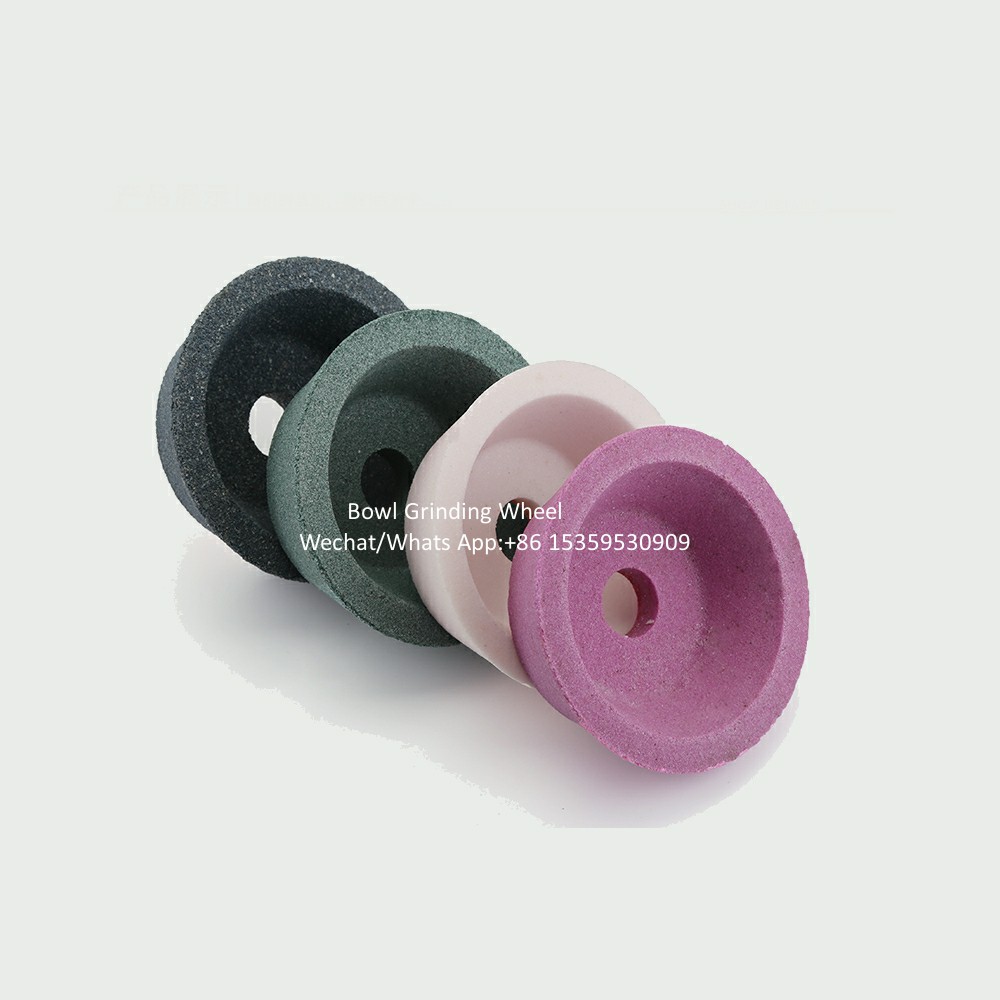

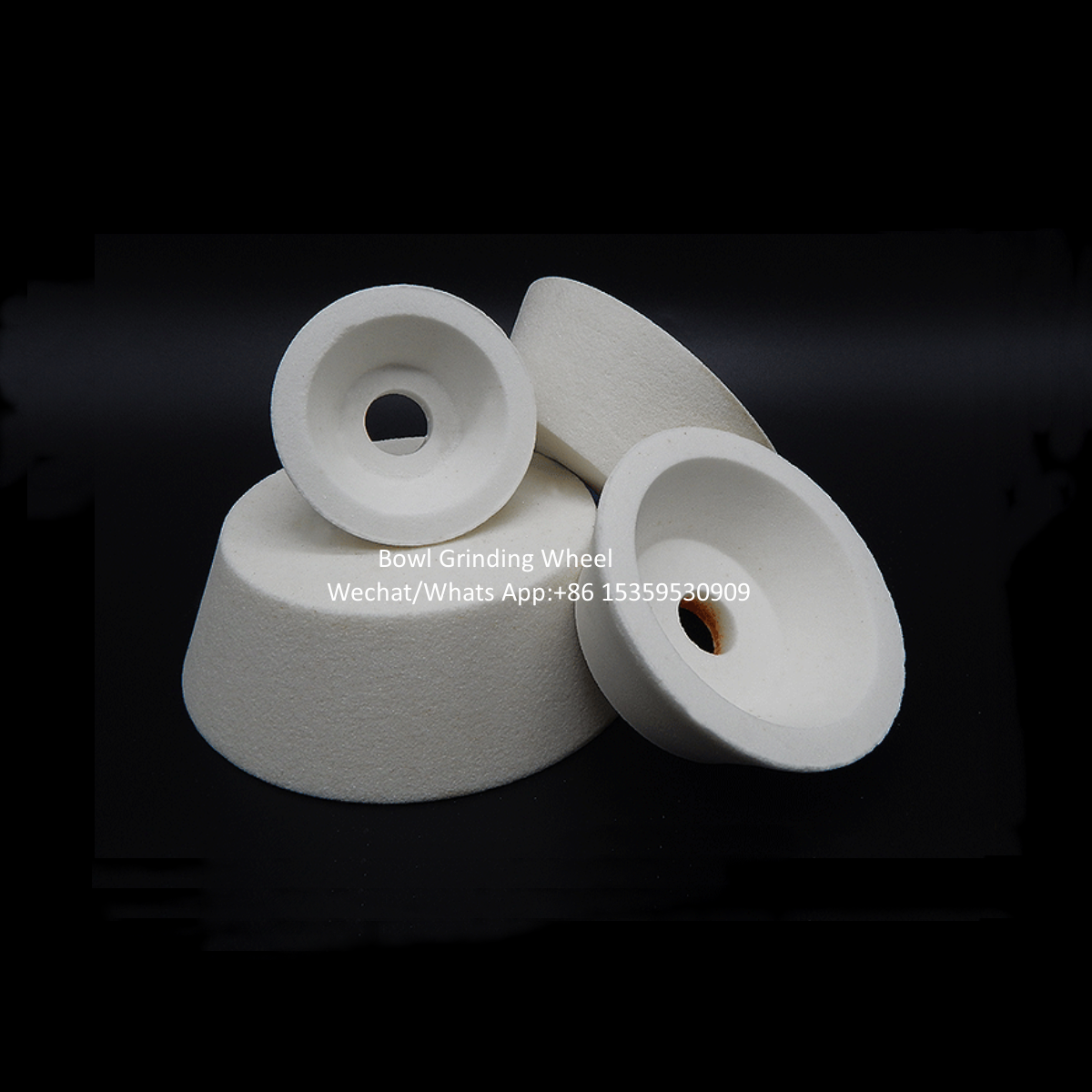

High Hardness Resin Bowl Type Grinding Wheel

Applications

It is suitable for the grinding of steels with hard materials and high heat sensitivity. Such as hardening steel, high carbon steel, general high speed steel, alloy steel and other grinding.

It is mainly used for the grinding and forming of tools, cutting tools, abrasive tools, gears, threads, thin-walled parts, rail grinding, sharpening tools, etc.

Main Features

1. Strong stability: Developed using resin adhesive, brown corundum, glass fiber and other materials, with high hardness, good shape retention and long service life.

2. Not easy to drop sand: Crystals made of white corundum have small crystal size, wear resistance, tensile resistance, impact resistance, clean surface and difficult to fall off.

3. High hardness: White corundum is a kind of artificial abrasive with high hardness, good shape retention, good self-sharpening, and high grinding efficiency.

4. The hardness of white alumina is higher than that of brown alumina, its particle size is easily broken, its edges and corners are sharp, its cutting performance is good, and its grinding heat is small.

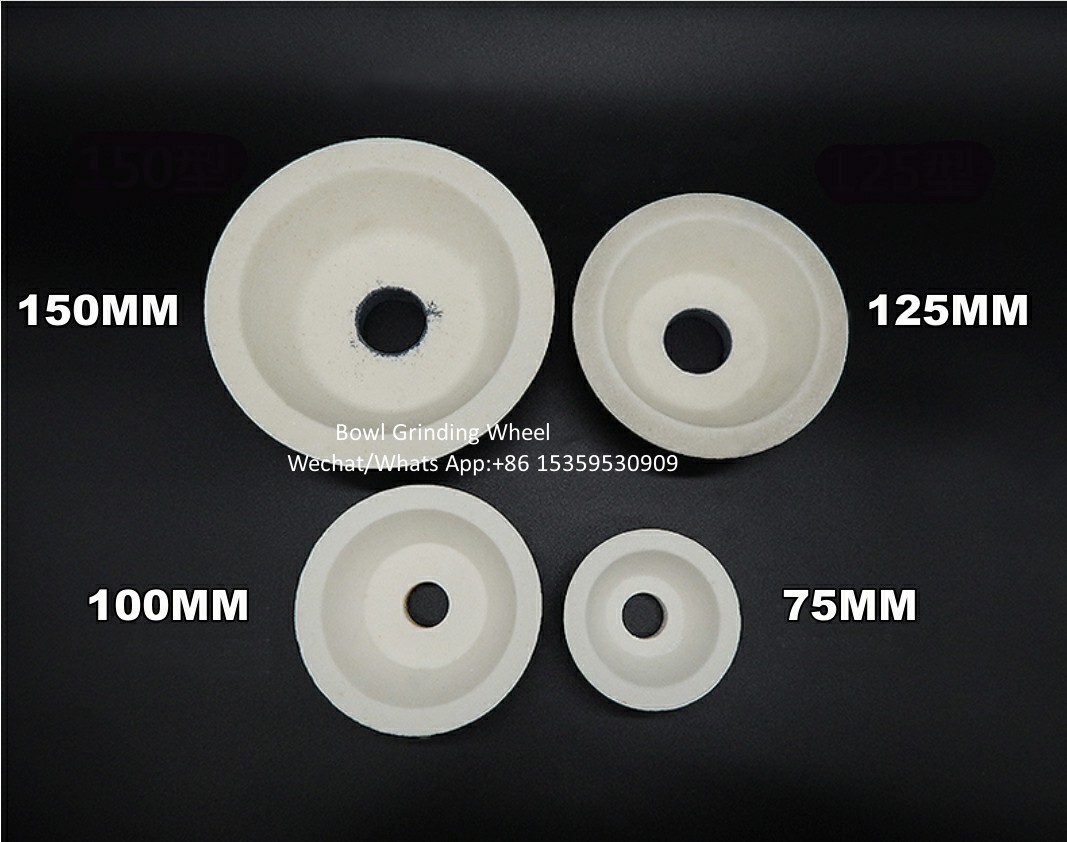

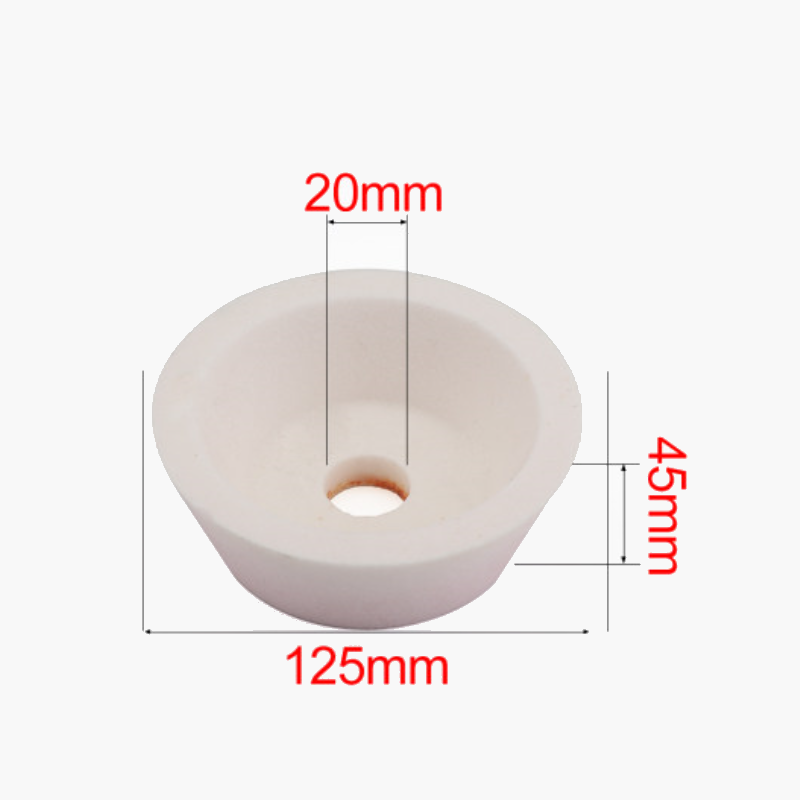

Optional Sizes

No.	Outter Diameter	Outter Height	Pore Diameter
1	250mm	25mm	13mm
2	75mm	32mm	20mm
3	75mm	35mm	20mm
4	100mm	35mm	20mm
5	100mm	45mm	20mm
6	125mm	45mm	32mm
7	150mm	45mm	32mm
8	150mm	50mm	32mm
9	175mm	63mm	32mm
10	200mm	63mm	32mm

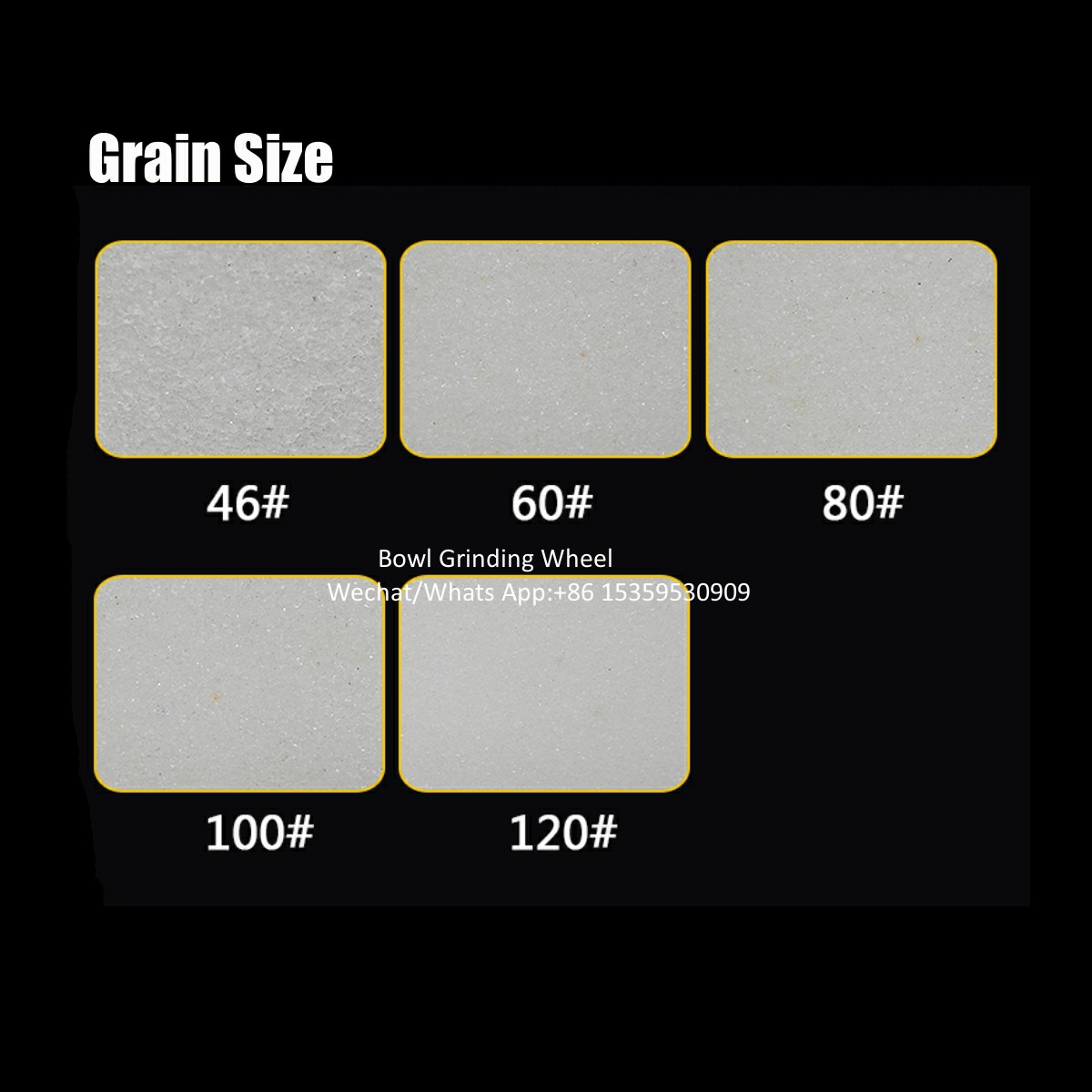

Grain Size/Particle Size:46#,60#,80#,120#,150# is optional. (Remarks:The Number Bigger ,the Particles are more finer!)

Any More questions all special Requirements,feel free to contact us!
