Composite Paper Cans Machine

FS-SL350/600 Semi-Automatic Paper Tubes Labelling Machine

Product ID：Composite Paper Cans Machine
QQ：
Phone: +86 15359 530909
Tel: +86 1535 9530909
Email: info@feisimachine.com
Time: 2021-09-03 17:11
INQUIRY

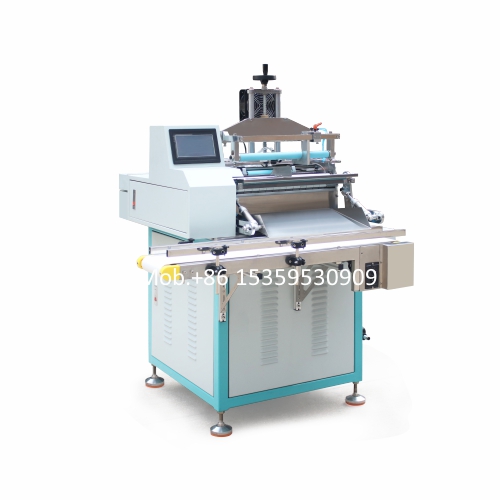

FS-SL350/SL600

Semi-Automatic Paper Tube Paper Cans Labelling Machine

Main Features

1.Application Fild: It is mainly used for paper tube label. It can apply glue to both ends or full page of the labels.

2.No need to change any mold parts, just adjust the positioning of labels and tubes and set the specification data through the human-machine interface.

3.During operation, only the labels need to be put into the standard library in batches. Photoelectric automatic detection of paper tubes, marking, gluing, labeling and automatic tube falling can be completed by the machine in one second.

4. Adopt PLC control system and touch screen, with simple setting and convenient operation.

Main Specifications

Model	FS-SL350	FS-SL600
Tubes Height/Length	80-350mm	80-600mm
Tubes Diameter	Ø28-126mm	Ø28-126mm
Labels GSM	128-157g	128-157g
Glue Type	Hotmelt Glue	Hotmelt Glue
Labeling Speed	20-35pcs/min	20-35pcs/min
Machine Voltage	220V,50Hz,Single	220V,50Hz,Single
Machine Power	2.3Kw	3.3Kw
Machine Size	1000*90x135mm	130090135mm
Machine Weight	300kgs	360kgs
