Composite Paper Cans Machine

Chips Cans Snack Cans Bending Expanding Machine

Product ID：Composite Paper Cans Machine
QQ：
Phone: +86 15359 530909
Tel: +86 1535 9530909
Email: info@feisimachine.com
Time: 2021-08-19 17:11
INQUIRY

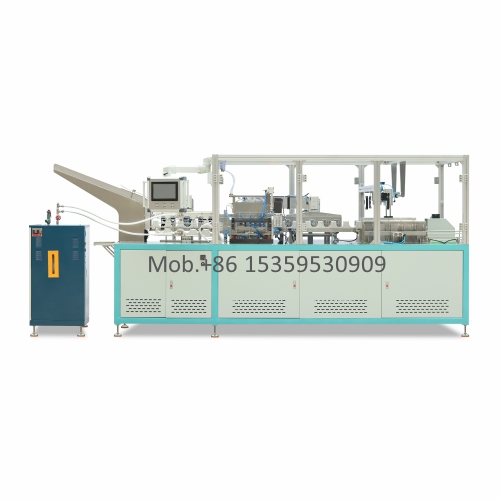

FS-IE250 Highly Speed Automatic Chips Cans Bending and Expanding Machine

(Horizontal Type Easy-open Cans Making Machine)

(Outward Bending/Mouth Expander /Cleaning All-in-One Machine)

Main Features

Applications:It mainly used for process chips paper cans or Snack Cans.

1.With 5 position of molds which work simultaneously.The output can reach 60pcs/min, humidification-lubrication-molding-mouth expanding-cleaning-turning cans, synchronous automatic operation, suitable for potato chip can production in large quantities.
2.It's equipped with automatic lubrication system of mold, with high precision and adjustable injection volume, no oil residue in the mouth after molding, effectively improving the molding reliability.
3.The main body adopts high-strength square steel and aviation aluminum profile protection framework, which is compact, simple and beautiful to meet the food grade requirements and health requirements of various industries.

Main Specifications

Item	Specifications
Tubes Diameter	Ø52-83mm,please order
Tubes Length	110-260mm
Tubes Thickness	0.7-0.9mm,please order
Working Speed	55-60pcs/min
Machine Motor	5Kw
Machine Voltage	380V,50Hz,3Phase
Machine Size	3800x1600x1800mm
Machine Weight	800kgs
