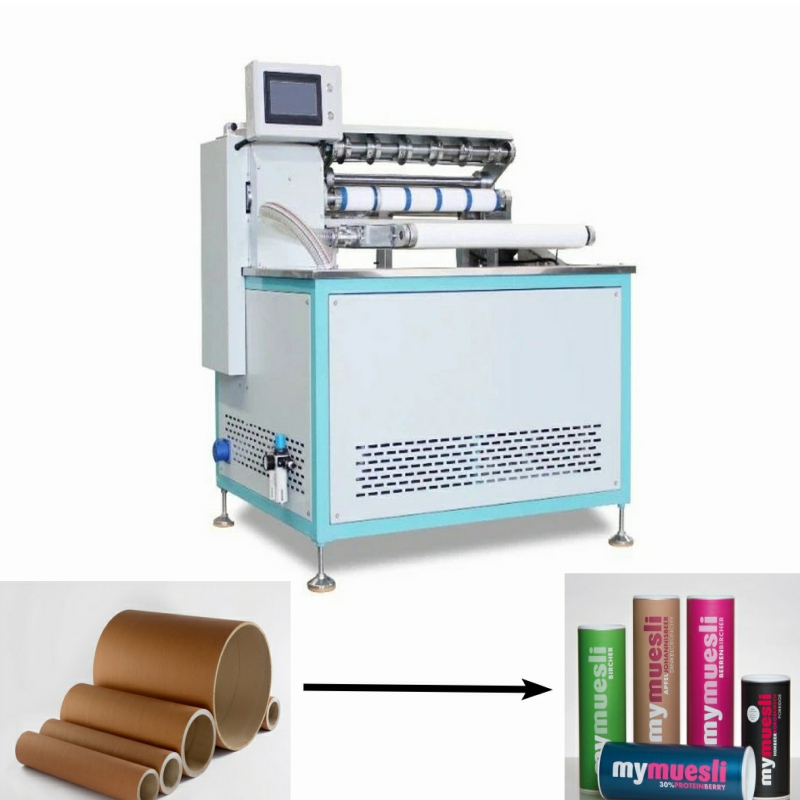

FS-WL580 Automatic White Latex Paper Tubes Labelling Machine

Application field: Mainly used in paper tube label labeling, single labeling can also be applied to multiple at the same time and automatically cut to the required height.
Main Feature
1. The operation is simple and easy to adjust, and the difficulty of mold processing is low, which is very suitable for the labeling process of small and medium batch paper can products.
2. Labeling with white latex is not easily affected by the processing environment and temperature, and can improve the forming effect of the subsequent processing procedures.
3. Using PLC control system and touch screen, the setting is simple and convenient.

Main Parameters:

Item	Specification
Tubes Height	50-580mm
Tubes Diameter	Φ40-150mm
Label GSM	128-157g
Positioning Accuracy	±0.3-1.0mm
Glue Type	Water White Glue
Glue Coating Way	Both Ends/Full Page
Unloading Way	Automatic
Label Speed	30-60Psc/min
Motor Speed	0-1400speed
Control System	PLC+Integrated Temperature Control
Air Pressure	0.3-0.5Mpa
Rated Power	2.3kw
Voltage	220v 50Hz, Single Phase
Machine Size	130105105cm
Machine Weight	200kg
Worker	1Person for 2-3Machine
