Paper Tubes Machine

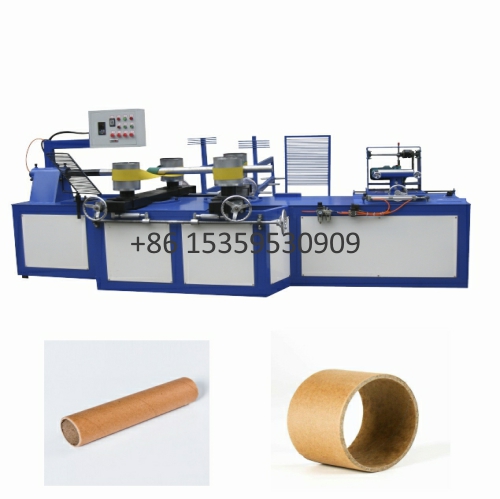

Paper Tubes Making Machine 4Drums Head

Product ID：Paper Tubes Machine
QQ：
Phone: +86 15359 530909
Tel: +86 1535 9530909
Email: info@feisimachine.com
Time: 2021-10-01 15:37
INQUIRY

FS-TM180-4D

Automatic Paper Tube Winding Machine

Main Features

Application: This machine is used for making heavy paper tubes , which wideliy applicated in jumbo roll tubes, plastic film tubes, paper mill jumbo roll, tapes cores, carpet rollers, and other industrial use tubes.

1. Adopts variable frequency converter control to ensure the accuracy of the length of paper tube.And Paper Tubes can be adjusted freely.

2. Product diameter and length can be customized according to customer needs.

3. Automatic reel cutting and loading on the line.

4.Easy Operation and convenient maintenance .

Main Specification

Item	Specification
Running Speed	18-25m/min,depends on diameter
Tubes I.D.	25-200mm
Tubes Layers	3-25 Layers,3-30Layers can be ordered!
GSM of Kraft Paper	80-600g
Tubes Thickness	1-15mm
Tubes Length	500-3000mm
Rewinding Head	4 Head /4 Drums
Total Power	15-22KW
Voltage	380V 50Hz 3Phase
Machine Weight	3800kgs
Machine Size	5000x1900x2100mm
Area Size	20x9x2.2m
Control Panel	PLC + Touch Screen,China Brand
Buttons	Omron,Japan ect.
