Disposable Tableware Machines

High Speed Paper Cup Making Machine

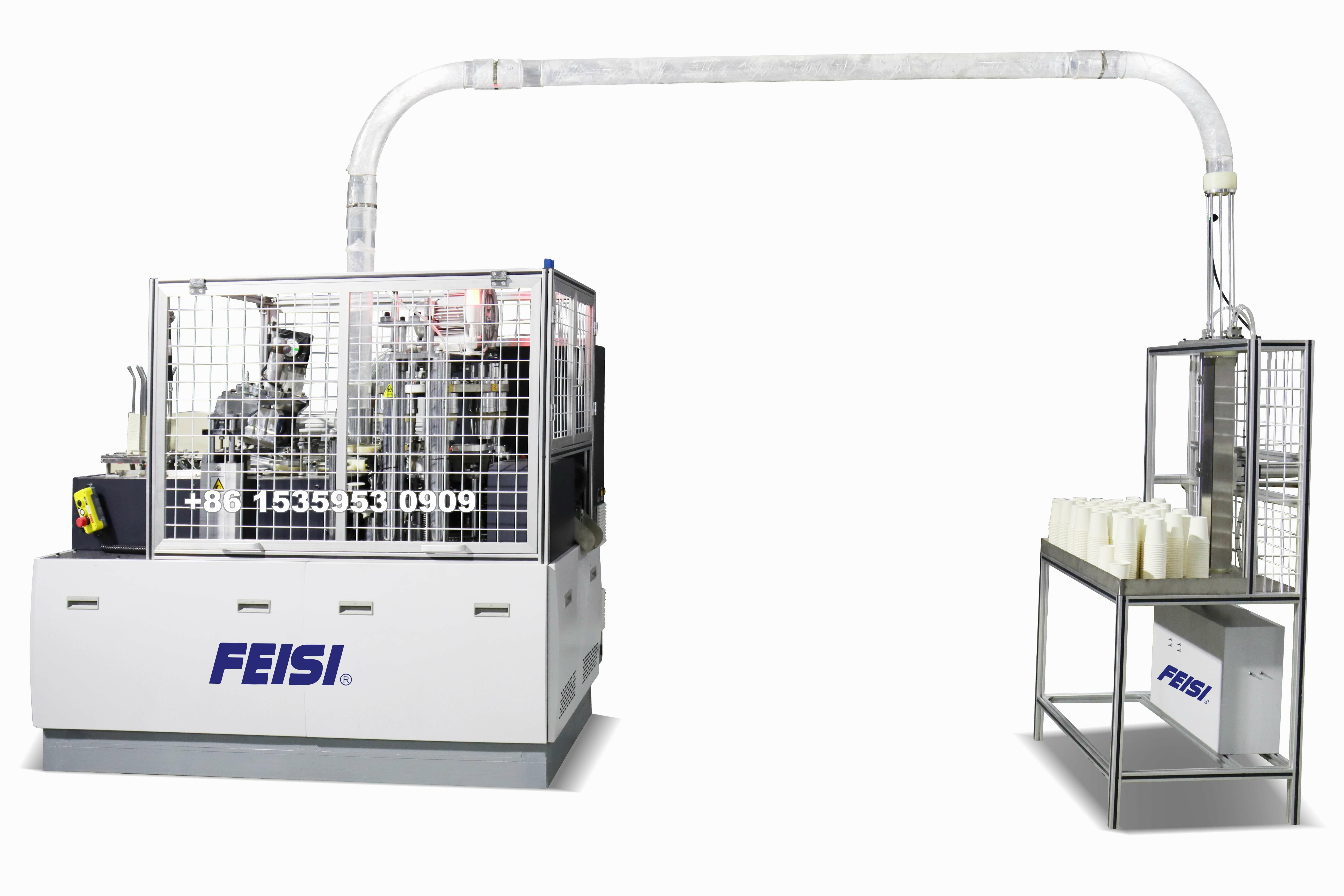

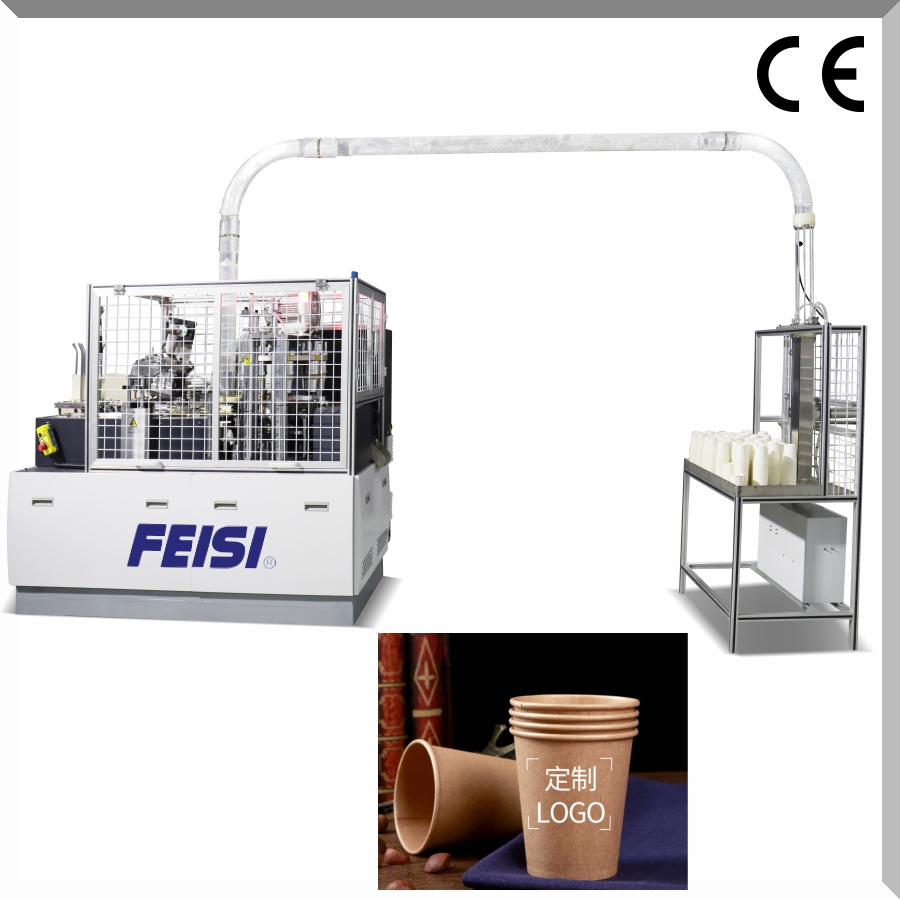

High Speed Automatic Paper Cups Making Machine

Item	Main Specifications
Machine Model	FS-PC-3-16OZ
Cups Size	3-16oz Top O.D. 45-90 Bottom O.D. 32-70 Height: 32-135mm Bottom Height: 4-10mm
Raw Materials	Kraft Paper Coating with PE/PLA (Single Side or Double Sides Coating) Kraft Paper or Pulp Paper Cups Body: Die-cut sheets Cups Bottom: Roll Type
Thickness/GSM of Paper	Thickness of Paper:0.345-0.455mm GSM of Paper: 150-300g/m²
Production Speed	90-113 Cups/min(9oz Cups) High Speed Model:150pcs/min we have higher speed model also !
Cups Body Bonding Way	By Ultrasonics Welding Head

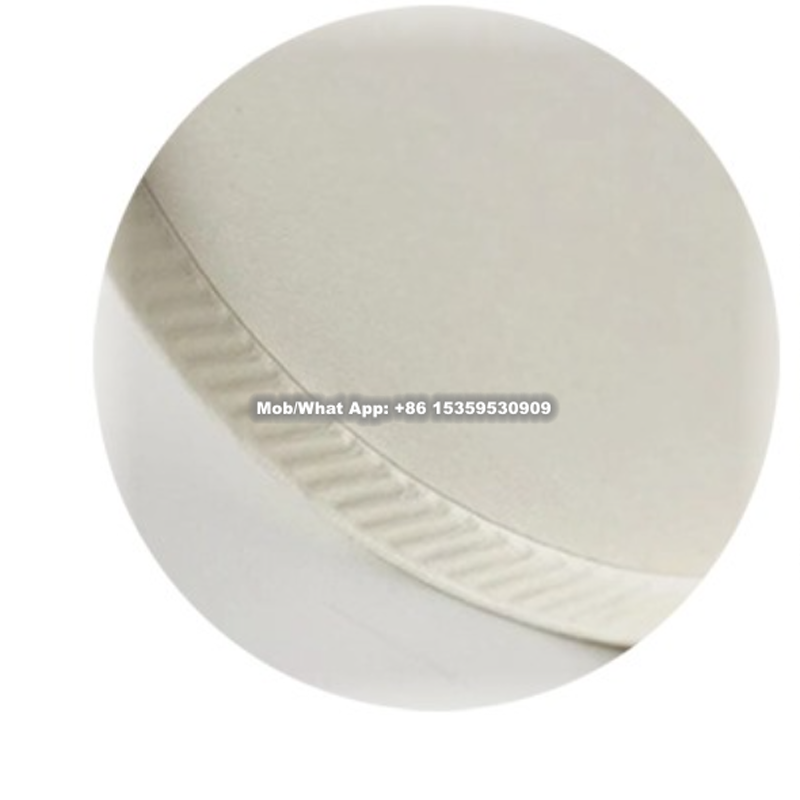

Cups Bottom Knurling	By Hot-Air Heating
Control System	Standard: China Top Brand: Innovance Mitsubishi Japan can be ordered!
Installation Total Power	4.5-6KW
Voltage	380V,50Hz,3Phase 220V，50Hz,Signle Phase Other voltage can be ordered!
Compressor Air Supply	0.6-0.8MPa、0.4m³/min Prepared by Customer
Machine Size	Machine：3000 x 1600x 1900mm Cups Collection Shelf： 1100 x 600x 1900mm
Machine Weight	2.5TONS
