Disposable Tableware Machines

Flexo Printing Machine

  • Product ID:Disposable Tableware Machines
  • QQ:
  • Phone: +86 15359530909
  • Tel: +86 1535 9530909
  • Email: info@feisimachine.com
  • Time: 2022-10-30 20:48
  • INQUIRY

320mm /850mm /950mm/1000mm/1200mm

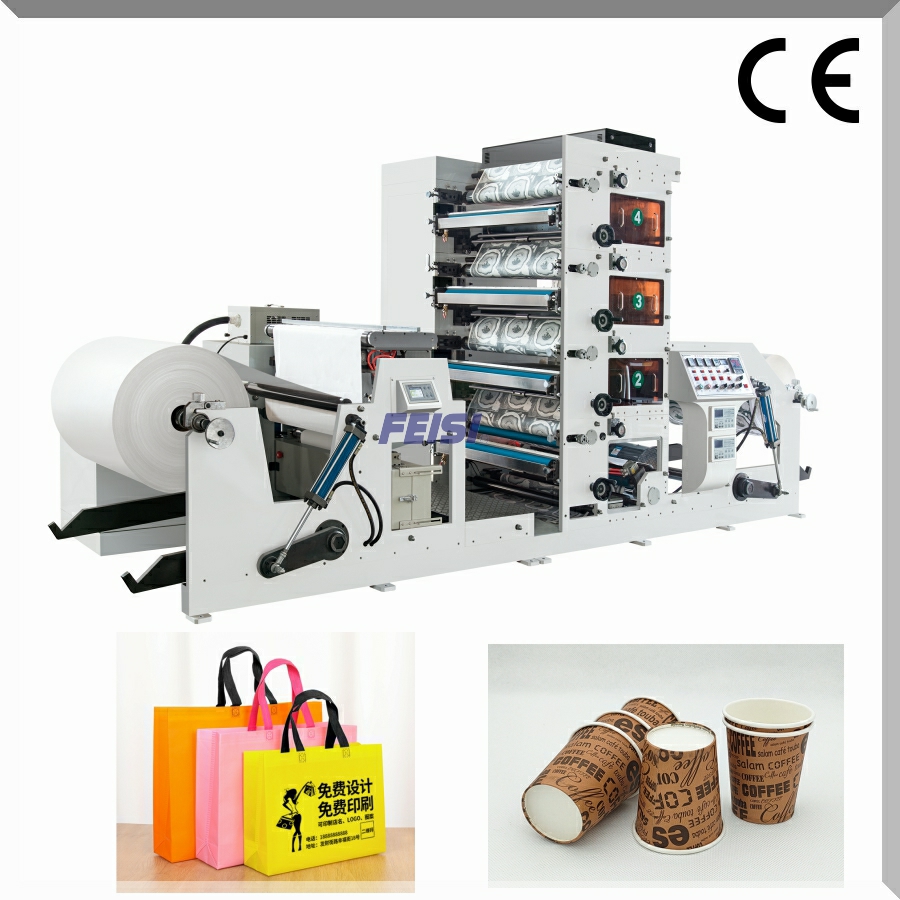

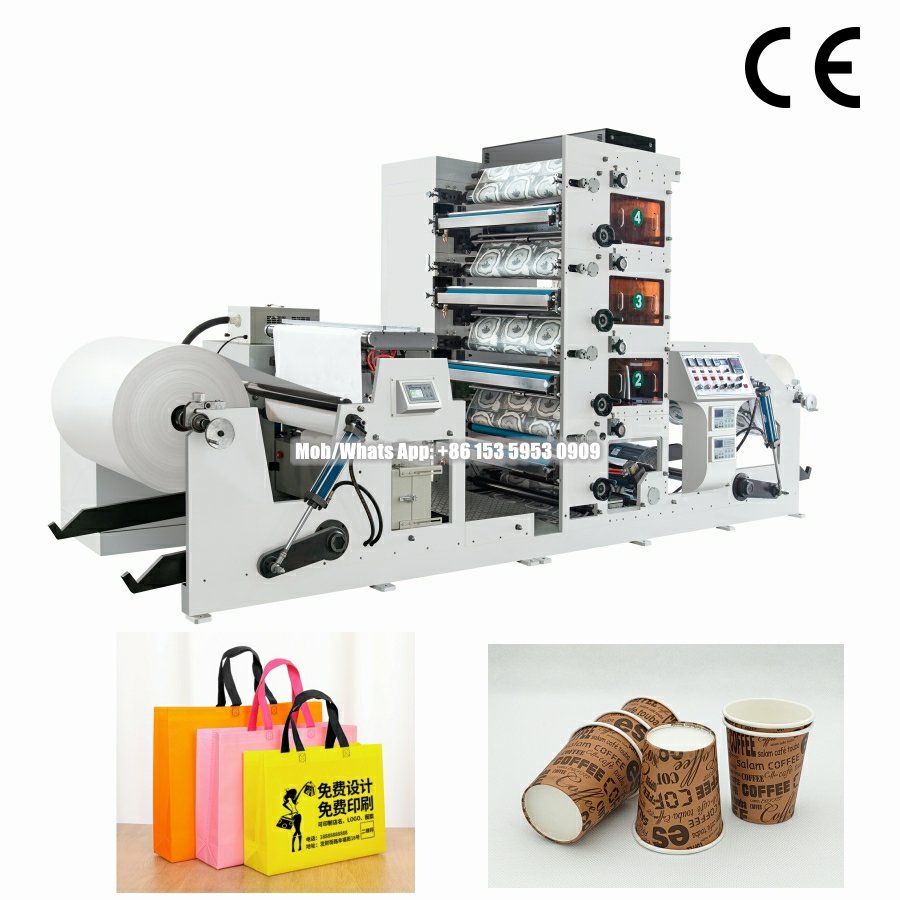

Automatic Flexo Printing Machine (UV can be ordered)





Main Features:

1. The machine is compact in structure, easy to operate, soft to start, and accurate to color registration.
2. The unwinding unit adopts magnetic powder braking (automatic constant tension control) and hydraulic lifting device.
3. The ceramic anilox roller is used to transfer the ink, the ink color is uniform, and the printing roller is automatically separated from the printing roller when it is stopped, and it is rotated vulgarly to prevent the ink from drying out.
4. Each group of individual 360° continuously adjustable vertical alignment devices
5. Each group of colors is equipped with an independent infrared drying system, which cooperates with high-speed operation and automatically opens the circuit when it stops.
6. The printing roller base and the receiving frame are equipped with jog and emergency stop devices, which are easy to operate, safe and reliable!
7. The counter can set the number of prints according to the requirements, and it will automatically stop when the number is reached, and automatically stop when the material is cut off.
8. The rewinding unit adopts frequency conversion motor (automatic constant tension control) and hydraulic lifting device.
9. The machine adopts imported variable frequency stepless speed regulation to adapt to different printing speeds.
10. This machine has complete functions, from feeding, deviation correction, printing, drying, and receiving materials at one time.
11. Optional: corona, glazing, UV drying, lamination, adhesive coating and other functions.

  Main Parameters:


Item Main Specifications
Machine Model FS-FP320/850/950/1000/1200
Printing Speed 50-60min/min
Finished Printing Roll Max Size Width x Diameter=320-1200mmxØ1300mm
Material Roll Max Size Width x Diameter =320-1200mmxØ1300mm
Printing Full Page Length 175-380mm
Overprint Accuracy ±0.10mm
Raw Materials Kraft Paper
Paper Coating with PE/PLA
Plastic Film
Nonwoven Fabric
Tissue Paper etc.
Thickness/GSM of Paper Roll Types
GSM of Material: 50-380g/m²
Drying Unit By Infrared Lamp
Control System Standard: China Top Brand: Innovance
Mitsubishi Japan can be ordered!
Total Power 36KW depends on different model
Voltage 380V±10%,50Hz,3Phase
Other voltage can be ordered!
Compressor Air Supply 0.6-0.8MPa、0.4m³/min
Prepared by Customer
Machine Size 4800 x 2050x 2100mm
Wooden Box Size:
2800×2250×2250mm         2000×1900×1400mm, Total CBM 9.5
Machine Weight 3-6.5 TONS


320mm Model:



850mm Model:
