Paper Tubes Paper Cans Machine

Automatic Cans Paper Tubes Labelling Machine

  • Product ID:Paper Tubes Paper Cans Machine
  • QQ:
  • Phone: +86 15359530909
  • Tel: +86 1535 9530909
  • Email: info@feisimachine.com
  • Time: 2024-08-01 22:40
  • INQUIRY

FS-L350/500/600/650
Automatic Paper Tube Paper Cans Lebelling Machine




Main Features

1.Application Fild: It is mainly used for paper tube label. It can apply glue to both ends  or full page of the labels.
2.No need to change any mold parts, just adjust the positioning of labels and tubes and set the specification data through the human-machine interface.
3.During operation, only the labels need to be put into the standard library in batches. Photoelectric automatic detection of paper tubes, marking, gluing, labeling and automatic tube falling can be completed by the machine in one second.
4. Adopt PLC control system and touch screen, with simple setting and convenient operation.

Main Specifications

Model FS-L350 FS-WL580A/
FS-WL580B-Auto
FS-WL600 FS-WL720B-Auto
Tubes Height/Length 80-350mm 80-580mm 80-600mm 80-720mm
Tubes Diameter Ø28-126mm Ø28-126mm Ø28-126mm Ø28-126mm
Labels GSM 128-157g 128-157g 128-157g 128-157g
Glue Type Hotmelt Glue Water-based Glue Hotmelt Glue Water-base Glue
Labeling Speed 20-35pcs/min 20-35pcs/min 20-35pcs/min 20-35pcs/min
Machine Voltage 220V,50Hz,Single 220V,50Hz,Single   220V,50Hz,Single 220V,50Hz,Single
Machine Power 2.3Kw 3Kw 3.3Kw 3.7Kw
Machine Size  1000*90x135mm 1000*90*135mm 1300*90*135mm 1300*90*135mm
Machine Weight 300kgs 340kgs 360kgs 400kgs

Remarks:More details and special requirements feel free to contact us!

1. Tiny Tubes Labelling Machine:

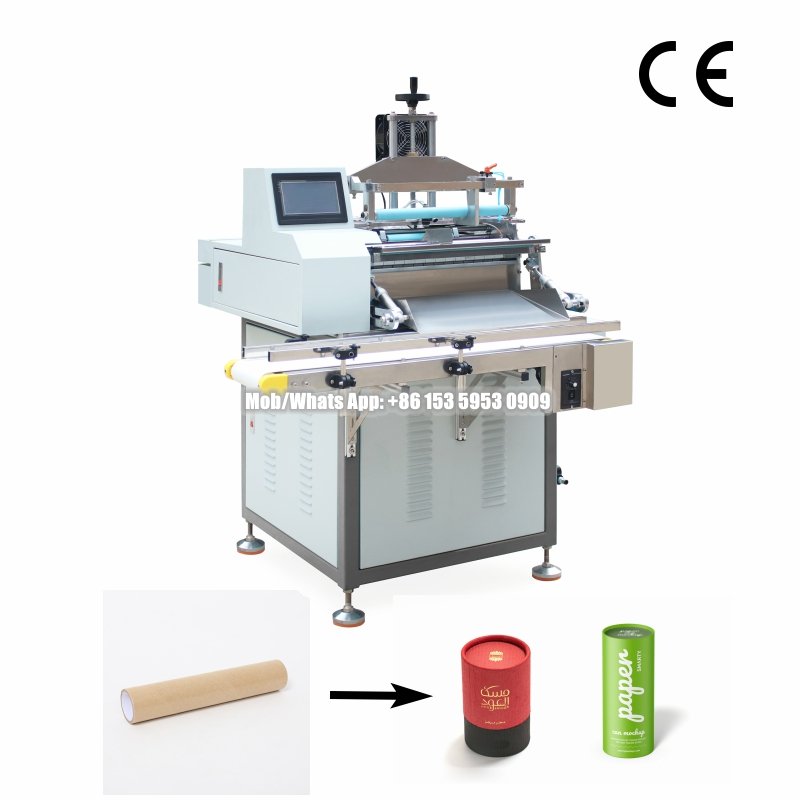

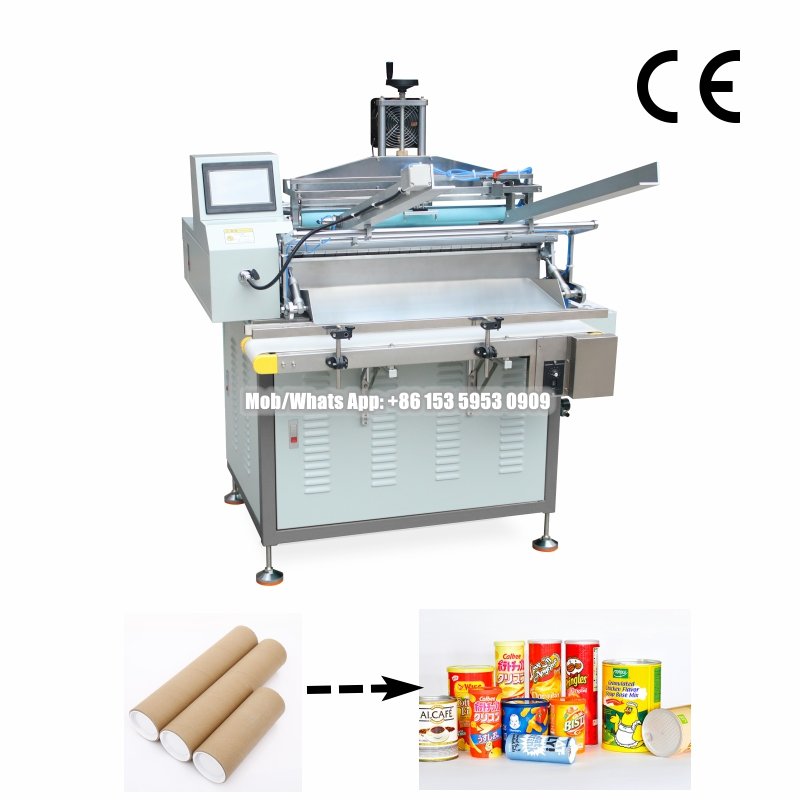

2. Hotmelt Gluing Model:Remarks: the Vertical Turnning -Up conveyor should be ordered when you
need it connect to fully production line

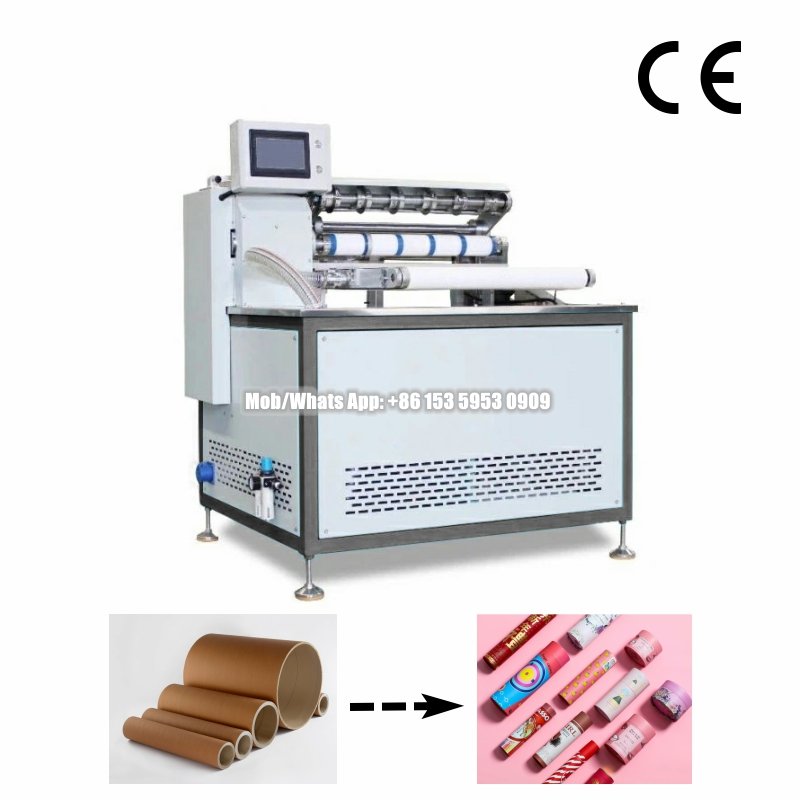

3.Water base Glue:Semi Automatic Model: FS-580A

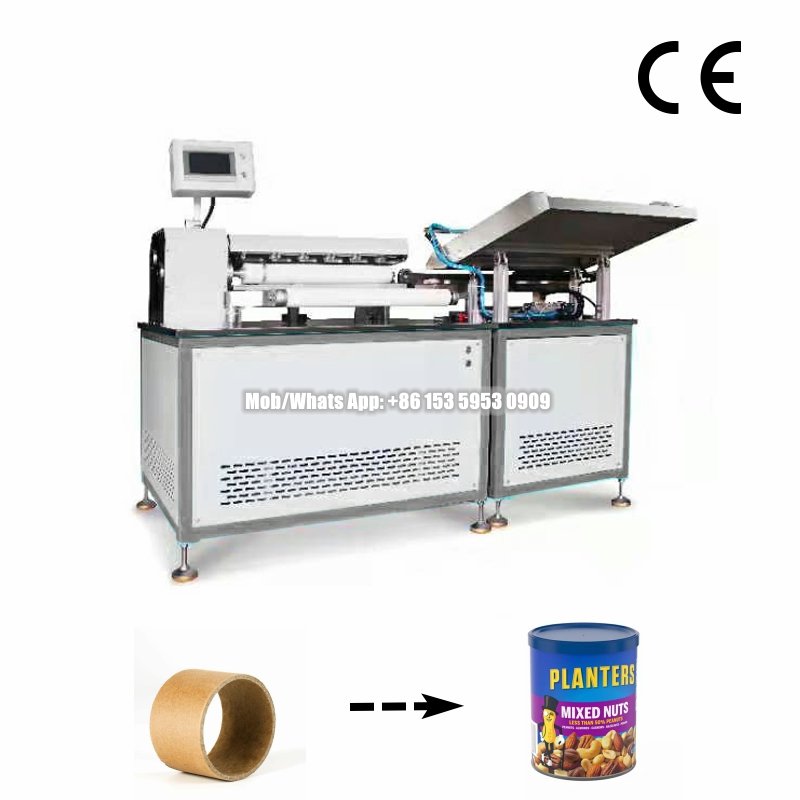

4. Water Base Glue-- Automatic Model: FS-580B



5. Water Base Glue-- Automatic Model: FS-720B
